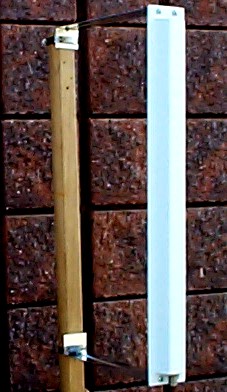

One-Port DualBand 902-960 MHz & 2400-2483 MHz Vertical Polarized Omni Directional antenna


Model Number: SP-DC3O-DG3O

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 900 – 960 MHz & 2400 – 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) < 1.5:1 ( or > 14dB)
4 Gain 6 dBi @ 900MHz
6 dBi @ 2.4GHz

5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360 deg @900MHz  360 deg@2.4GHz
7 3dB Vertical Beamwidth 24 deg @900MHz  30 deg @2.4GHz
8 Max. Power Input 20W
9 Connector Type N Female Or Custom Design
10 Appearance Panel Or Pipe Type
11 Size 25.5 x 2 x 2 [inch]
12 Radome Material PVC with UV Protection
13  Radome Color Grey
14 Case Design Water Resistance
15 Weight 2 Lb
16 Wind Loading (Frontal) ³ 5Kg 200km/h
17 Temperature Range -45 to +75 ° C
18 Storage Temperature -30 to +75 ° C
19 Sensing Resistor or
DC-Ground
Yes
20 Life Expectancy 20 years
