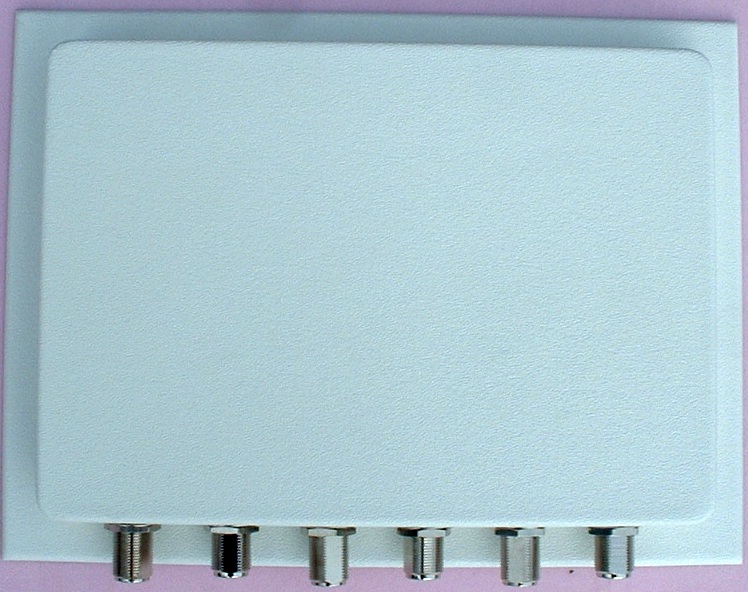

802.11N MIMO Six-Port 2400-2483MHz 5700-5900MHz 6.5dBi Dual Polarized Panel Antenna
(Each antenna is Dual Polarized)
Model Number: SP-G10J10VH-4L
Technical Specifications
| No |
|
|
|
| 1 | Frequency Range | 2400 ~ 2483 MHz & 5100 ~ 5900 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | 3 x 6.5 dBi @ 2.4GHz 3 x 6.5 dBi @ 5.8GHz |
|
| 5 | Polarization | Vertical & Horizontal Combined | |
| 6 | Cross Pol | 0 dB | |
| 7 | 3dB Horizontal Beamwidth | 53 deg @ 2.4G 53 deg @ 5GHz | |
| 8 | 3dB Vertical Beamwidth | 62 deg @ 2.4G 62 deg @ 5GHz | |
| 9 | Front to Back Ratio | > 20dB | |
| 10 | Max. Power Input | 20W | |
| 11 | Connector | N female, Bottom Feed | Or Custom Design |
| 12 | Appearance | Panel Type | |
| 13 | Size | 8.5x11.5x1 [inch] | |
| 14 | Housing Material | Powder Coated Aluminum | |
| 15 | Radom Material | ABS with UV Protection | |
| 16 | Radom Color | White | |
| 17 | Case Design | Water Resistance | |
| 18 | Weight | 3 Lb | |
| 19 | Wind Loading (Frontal) | > 10Kg | 200km/h |
| 20 | Temperature Range | -45 to +75 Degrees | |
| 21 | Storage Temperature | -30 to +75 Degrees | |
| 22 | Mounting Hardware | Clamp Set | |
| 23 | Life Expectancy | 20 years |
