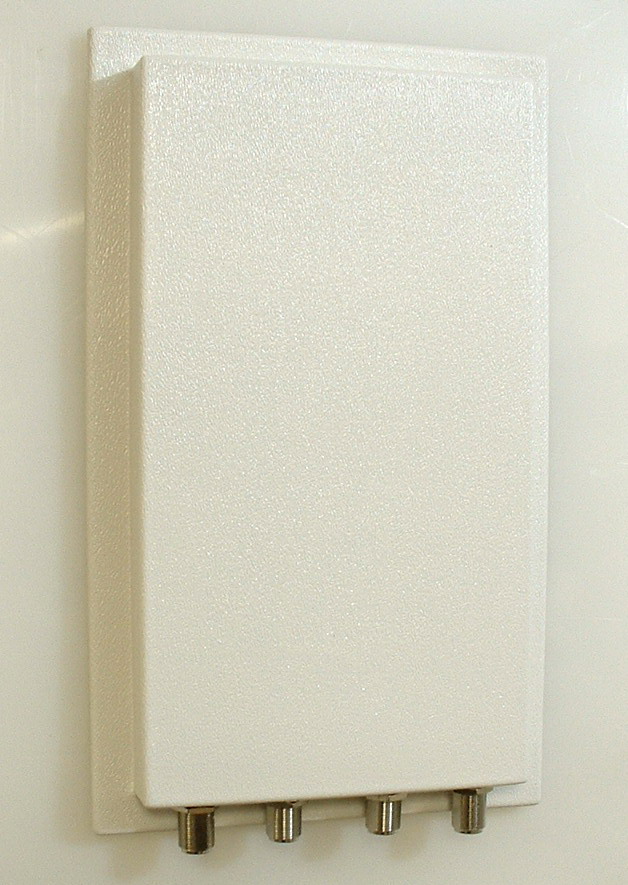

802.11a/b/g/n MIMO Four-Port DualBand 2400-2483MHz & 5100-5900MHz Panel Omni antenna

Model Number: SPDGJ46O

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 – 2483 MHz & 5100 – 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 2 x 6.5 dBi @ 2.4GHz
2 x 8 dBi @ 5GHz

5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360 deg @ 2.4G    360 deg @ 5GHz
7 3dB Vertical Beamwidth 24 ° @ 2.4GHz   18° @ 5GHz
8 Max. Power Input 20W
9 Connector Female N Or Custom Design
10 Appearance Panel Type
11 Size 14x8x1 [inch]
12 Radome Material ASA with UV Protection
13  Radome Color White
14 Case Design Water Resistance
15 Weight 1.5 LB
16 Wind Loading (Frontal) ³ 5Kg 200km/h
17 Temperature Range -45 to +75 ° C
18 Storage Temperature -30 to +75 ° C
19 Sensing Resistor or
DC-Ground
Yes
20 Life Expectancy 20 years
