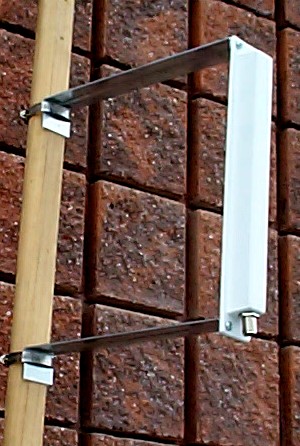

5.25-5.9GHz 8dBi Omni-directional Antenna


Model Number: SPDJ6OP

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 5100 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 8dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360°   See attached plot
7 3dB Vertical Beamwidth 12°   See attached plot
9 Max. Power Input 20W
10 Connector N female Or Custom Design
11 Appearance See attached drawing
12 Size 10 ´ 2 ´1 (inch)
13 Housing Material Powder Coated Aluminum
14 Radome Material ABS with UV Protection
15  Radome Color Gray or White
16 Case Design Water Resistance
17 Weight 0.5 Lb
18 Wind Loading (Frontal) ³ 10Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground
Yes
22 Life Expectancy 20 years
