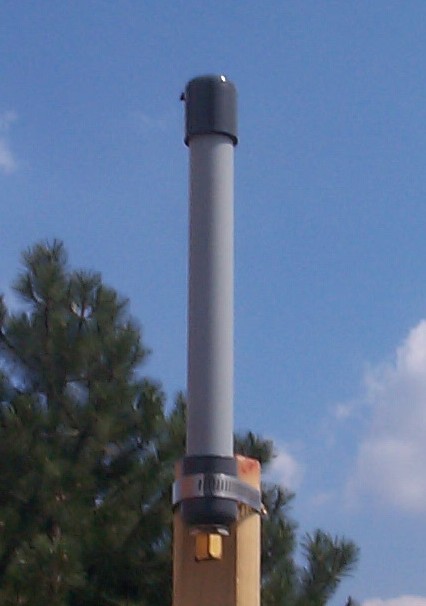

5.1-5.9GHz 9dBi Omni-directional Antenna

Model Number: SPDJ8O

Technical Specifications
No
ITEM
TYPICAL
REMARKS
1 Frequency Range 5100 5900 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) £ 1.5:1 ( or ³ 14dB)
4 Gain 9dBi
5 Polarization Vertical, Linear
6 3dB Horizontal Beamwidth 360°
7 3dB Vertical Beamwidth 13°
9 Max. Power Input 20W
10 Connector N female Or Custom Design
11 Appearance
12 Size 12" ´ 1"
13 Housing Material PVC with UV Protection
14 Radome Material PVC with UV Protection
15  Radome Color Gray
16 Case Design Water Resistance
17 Weight 0.5 Lb
18 Wind Loading (Frontal) ³ 10Kg 200km/h
19 Temperature Range -45 to +75 ° C
20 Storage Temperature -30 to +75 ° C
21 Sensing Resistor or
DC-Ground
DC-Grounded
22 Life Expectancy 20 years
