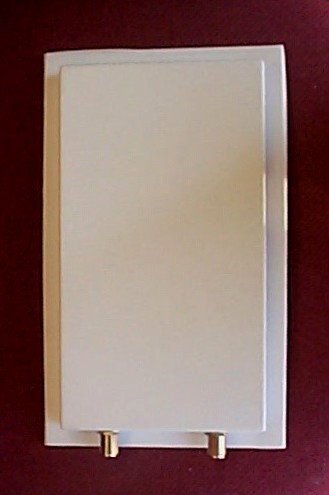

2.4GHz Dual Polarized Omni-Directional Antenna
Model Number: SPDPG-4O-H2O |
 |
| No |
|
|
|
| 1 | Frequency Range | 2400 – 2483 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | £ 1.5:1 ( or ³ 14dB) | |
| 4 | Gain | 6.5dBi @ V-Pol 5.5dBi @ H-Pol |
|
| 5 | Polarization | V-Pol & H-Pol, Linear | |
| 6 | 3dB Horizontal Beamwidth | 360° | |
| 7 | 3dB Vertical Beamwidth | 24deg @ V-Pol 30deg @ H-Pol |
|
| 9 | Max. Power Input | 20W | |
| 10 | Connector | N female | Or Custom Design |
| 11 | Port to Port Isolation | -30dB Min. | |
| 12 | Size | 14.5x 8.5 x 1 [inch] | |
| 14 | Radome Material | ASA with UV Protection | |
| 15 | Radome Color | Gray or White | |
| 16 | Case Design | Water Resistance | |
| 17 | Weight | 0.5 Lb | |
| 18 | Wind Loading (Frontal) | ³ 10Kg | 200km/h |
| 19 | Temperature Range | -45 to +75 ° C | |
| 20 | Storage Temperature | -30 to +75 ° C | |
| 21 | Sensing Resistor or
DC-Ground |
DC-Grounded | |
| 22 | Life Expectancy | 20 years |
