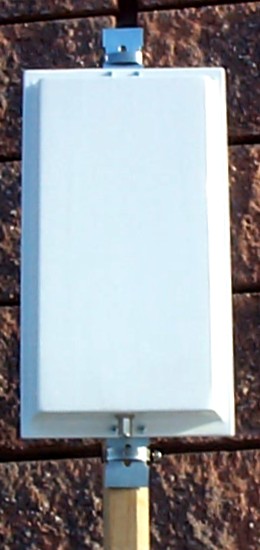

902-928MHz 8.5dBi 80 Deg Bi-directional(front and Back) Sector Panel Antenna
Model Number: SPHDC4B |
 |
Technical Specifications
| No |
|
|
|
| 1 | Frequency Range | 902 ¾ 928 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | >8.5dBi | |
| 5 | Polarization | Horizontal, Linear | |
| 6 | 3dB Horizontal Beamwidth | 80 Degrees Bi-directional Front and Back |
|
| 7 | 3dB Vertical Beamwidth | 16 Degrees | |
| 8 | Max. Power Input | 20W | |
| 9 | Connector | N/SMA Female, Bottom Feed | Or Custom Design |
| 10 | Appearance | Panel Type | |
| 11 | Size | 30 x 10 x 2 [inch] | |
| 12 | Housing Material | Powder Coated Aluminum | |
| 13 | Radom Material | ABS with UV Protection | |
| 14 | Radom Color | White | |
| 15 | Case Design | Water Resistance | |
| 16 | Weight | 3 Lb | |
| 17 | Wind Loading (Frontal) | 10 Kg | 200km/h |
| 18 | Temperature Range | -45 to +75 Degrees | |
| 19 | Storage Temperature | -30 to +75 Degrees | |
| 20 | DC Ground Option | DC Grounded | |
| 21 | Mounting Hardware | Clamp Set | |
| 22 | Life Expectancy | 20 years |
