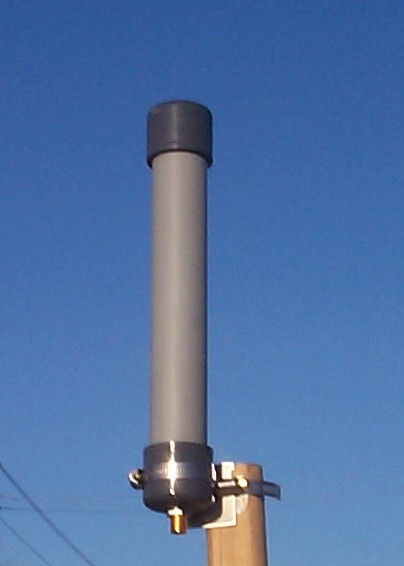

2.4GHz 5.5dBi Horizontal Polarized Omni-directional antenna

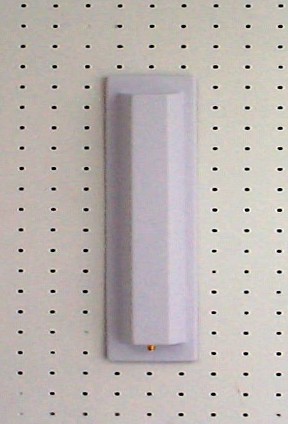

SPHSG2O

SPHSG2OP

Technical Specifications

No
ITEM
TYPICAL
REMARKS
1 Frequency Range 2400 ¾ 2483 MHz
2 Impedance 50 W
3 VSWR (or Return Loss) < 1.5:1 ( or > 14dB)
4 Gain >5.5dBi
5 Polarization Horizontal, Linear
6 X-Pol <-20dB
7 3dB Horizontal Beamwidth 360 Degrees
8 3dB Vertical Beamwidth 30 Degrees
9 Max. Power Input 20W
10 Connector N female, Bottom Feed Or Custom Design
11 Appearance Pipe Type
12 Size 15 x2 [inch]
14 Radom Material PVC
15 Radom Color Gray
16  Case Design Water Resistance
17 Weight 1 Lb
18 Wind Loading (Frontal) > 10Kg 200km/h
19 Temperature Range -45 to +75 Degrees
20 Storage Temperature -30 to +75 Degrees
21 Lighting Protection Direct Grounding
22  Mounting Hardware Clamp Set
23 Life Expectancy 20 years
