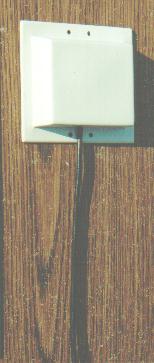

7.3dBi Directional Panel Antenna for PCS
Model Number: SPSD11 |
 |
| No |
|
|
|
| 1 | Frequency Range | 1850 ¾ 1990 MHz | |
| 2 | Impedance | 50 W | |
| 3 | VSWR (or Return Loss) | < 1.5:1 ( or > 14dB) | |
| 4 | Gain | 7.3dBi | Max. Gain |
| 5 | Polarization | Vertical, Linear | |

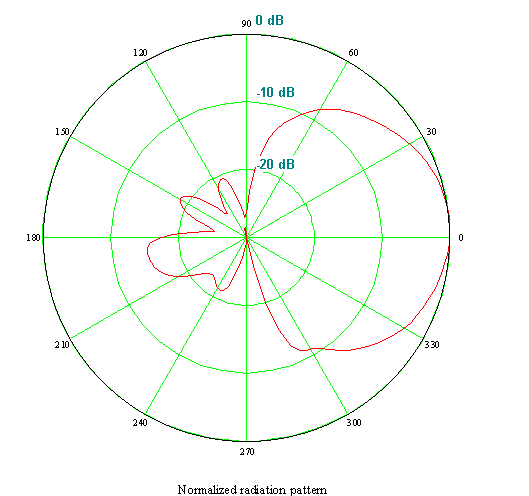

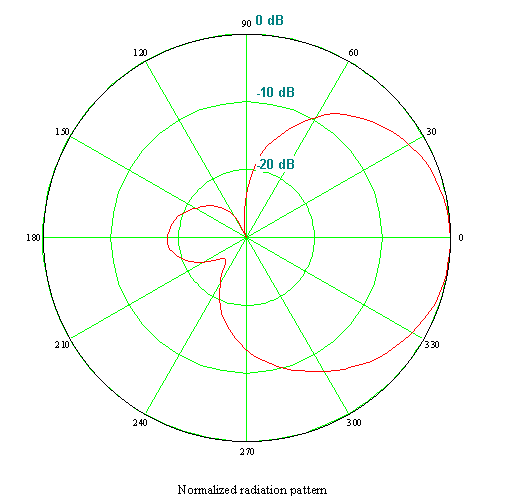

| 6 | 3dB Horizontal Beamwidth | 70 Degrees | See Attached Plot |
| 7 | 3dB Vertical Beamwidth | 70 Degrees | See Attached Plot |
| 8 | Front to Back Ratio | > 15dB | See Attached Plot |
| 9 | Max. Power Input | > 10W | |
| 10 | 3rd Order Intermodulation | < -143dBc | 2W Input Power |
| 11 | Connector | Female SMA w. 2ft RG-58/U | |
| 12 | Appearance | Panel Type | |
| 13 | Size | 110 x 110 x 28 [mm] | |
| 14 | Housing Material | Powder Coated Aluminum | |
| 15 | Radom Material | ASA with UV Protection | |
| 16 | Radom Color | Beige or White | |
| 17 | Case Design | Water Resistance | |
| 18 | Weight | 100g | |
| 19 | Wind Loading (Frontal) | > 10Kg | 200km/h |
| 20 | Temperature Range | -45 to +75 Degrees | |
| 21 | Storage Temperature | -30 to +75 Degrees | |
| 22 | Lighting Protection | Direct Grounding | |
| 23 | Mounting Hardware | Clamp Set | |
| 24 | Life Expectancy | 20 years |
